Product Series
Thermal Break Window & Door Profile
Insulated system profiles for casement, tilt-turn and sliding windows in multiple series and colours.
- Alloy
- 6063
- Temper
- T5 / T6
- Wall thickness
- 1.4 – 2.0 mm (national standard)
- Size range
- 50 / 55 / 60 / 65 / 70 / 108 series system depths
- Supply
- System sets by tonnage, colour-matched batches, project-based scheduling.
Surface finishes
AnodizingElectrophoresisPowder crystal coatingWood grain transferFluorocarbon
Thermal break profiles are produced from primary 6063 aluminum and joined with PA66 GF25 polyamide strips through a full rolling process, delivering low U-values for residential and commercial glazing.

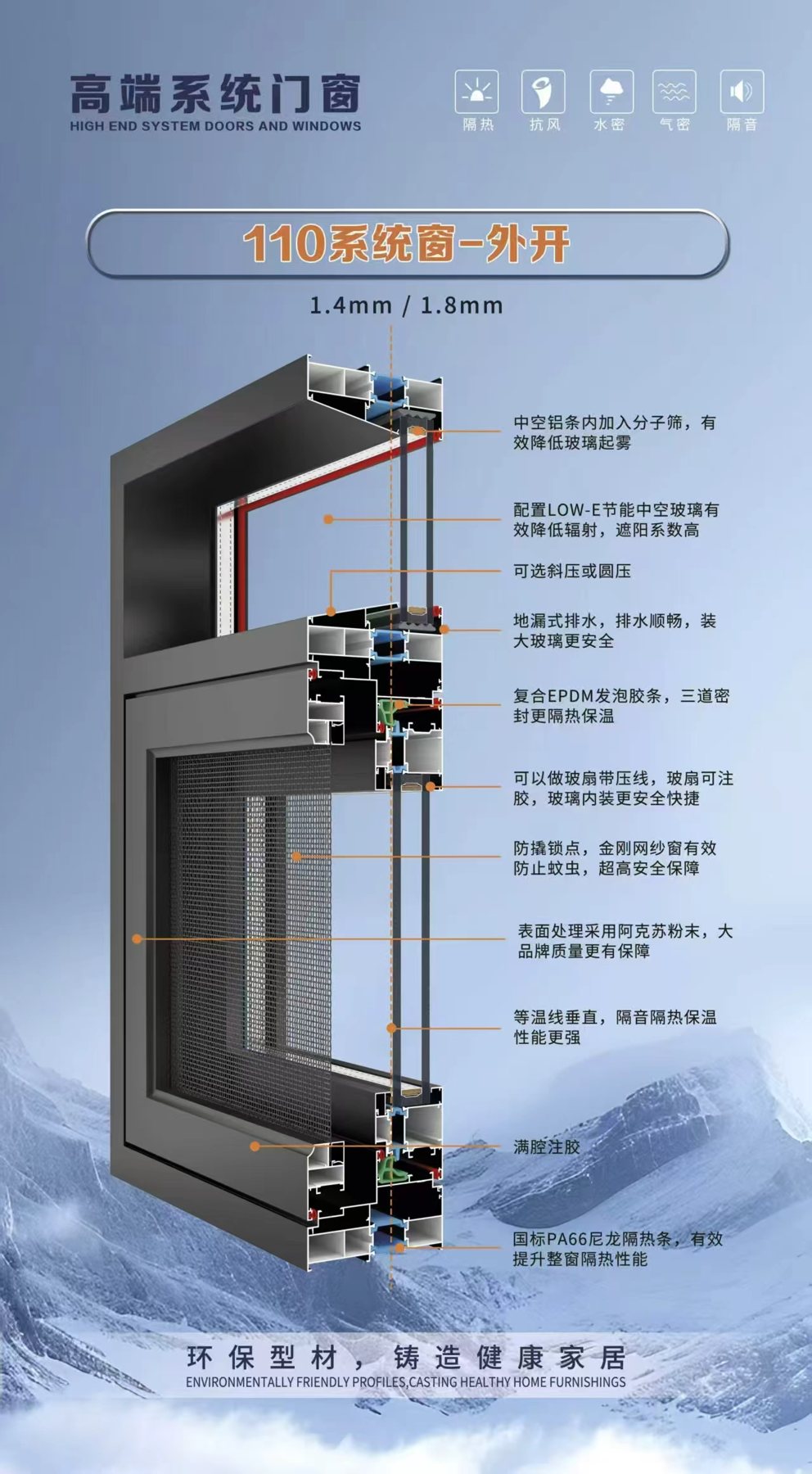

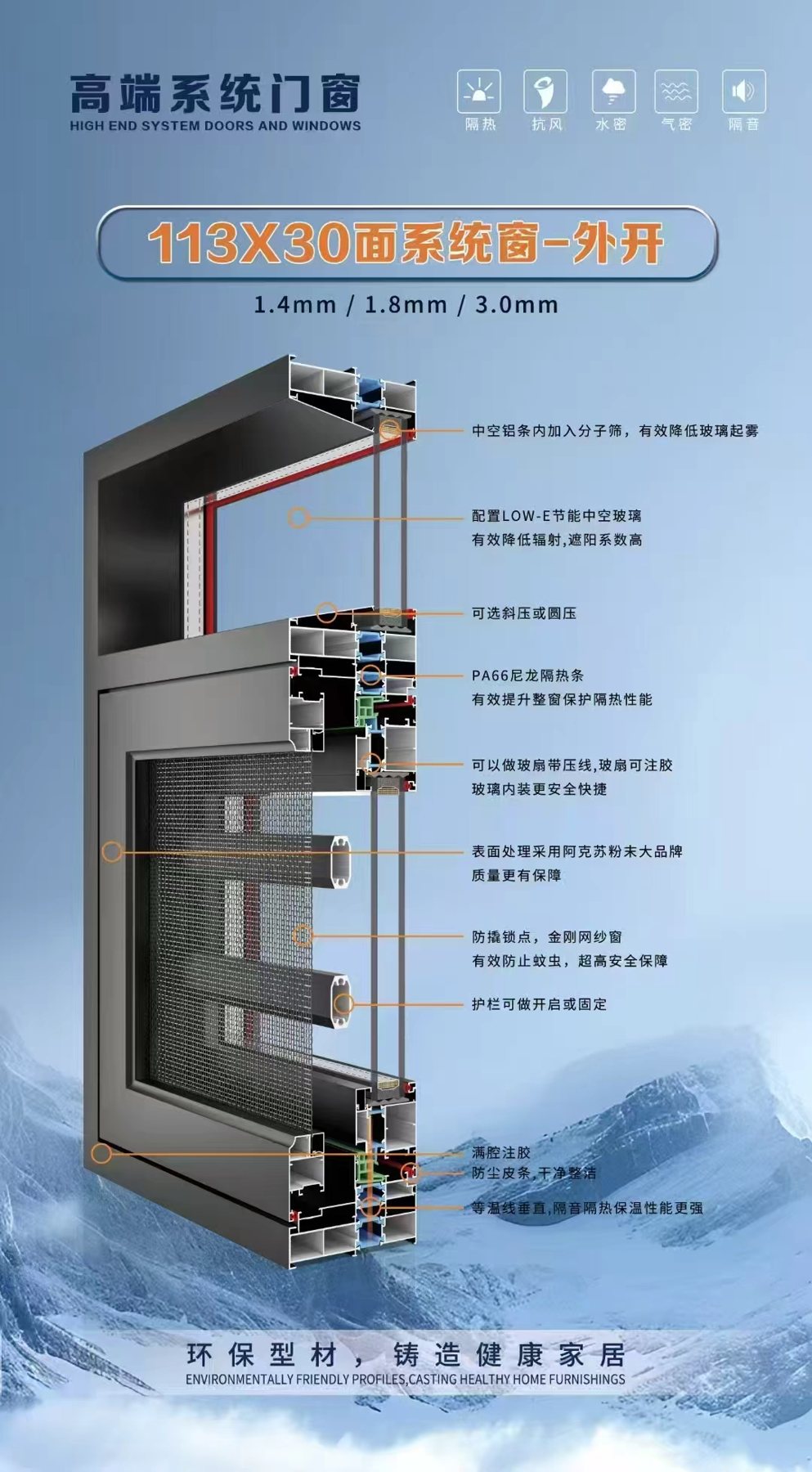

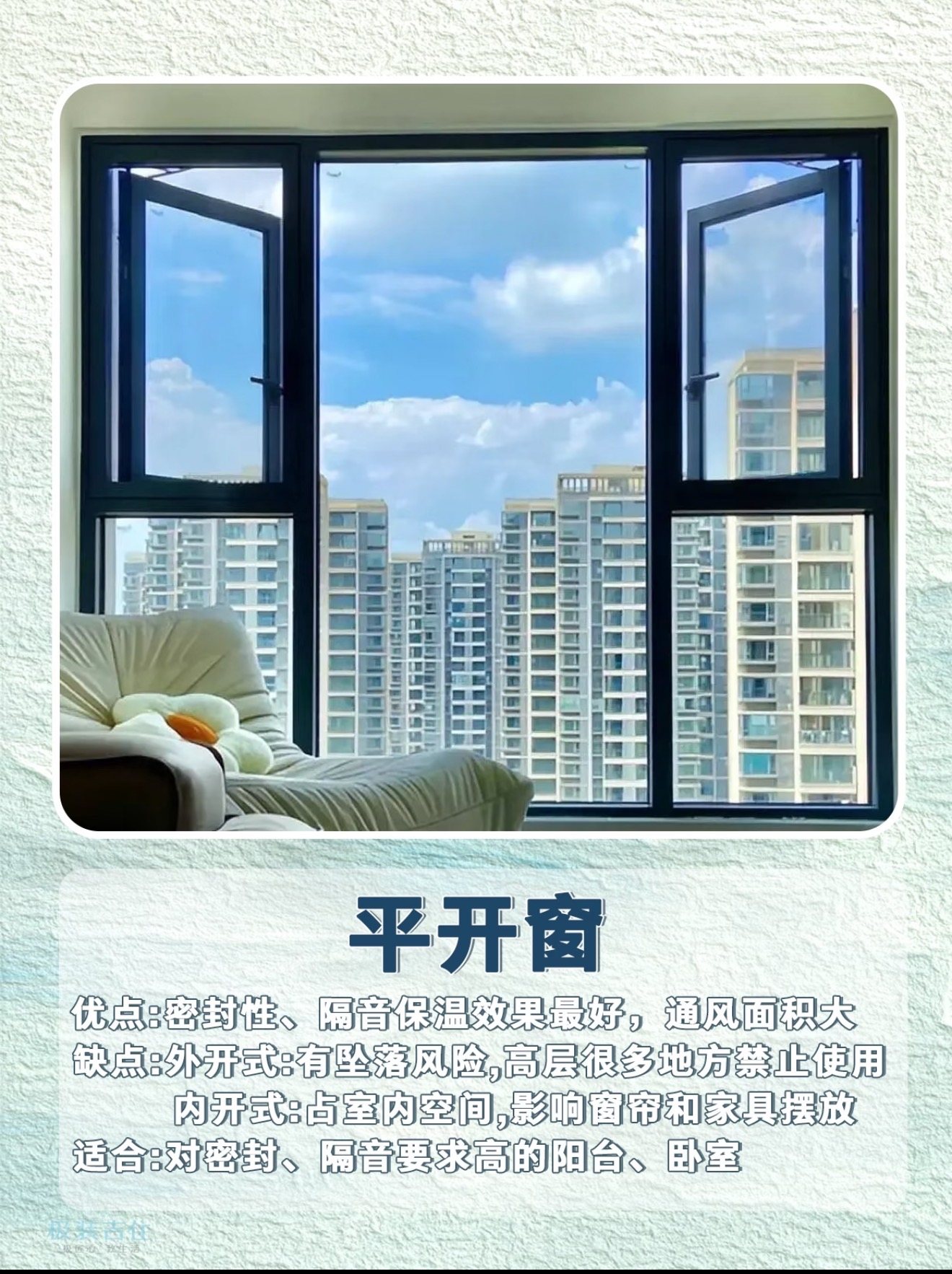

The series is offered in multiple system depths, multiple colours and multiple opening methods — inward casement, outward casement, tilt-turn, top-hung and sliding — with matching curtain wall and special-shaped sections.
Key Features

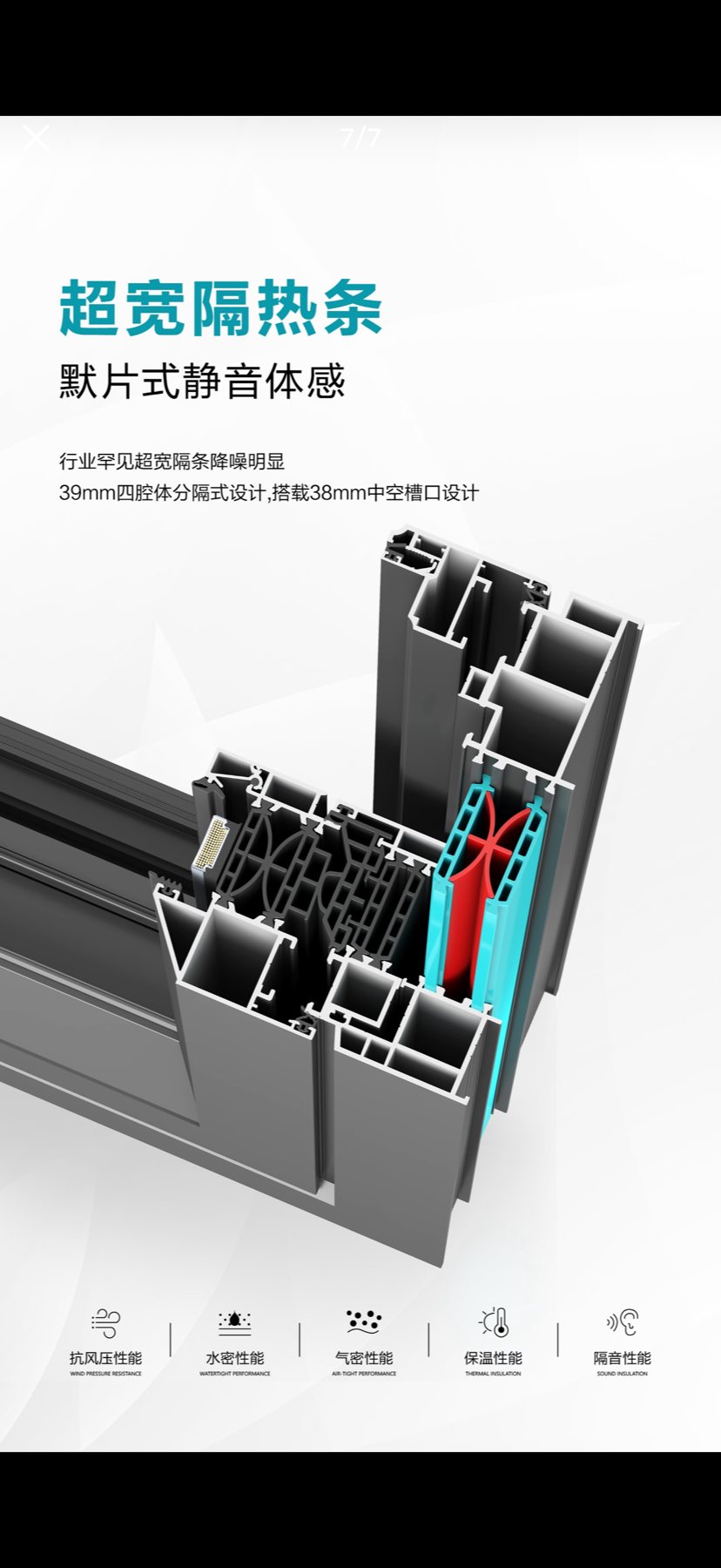

- PA66 GF25 insulating strip, rolled and locked
- Multi-chamber drainage design
- Compatible with mainstream hardware systems
- Sound insulation and energy-saving performance
Related
Other Product Series
Inquiry
Ask For A Price On Thermal Break Profiles
Tell us the section, alloy, finish colour and quantity. We reply with unit price, tooling cost if a new die is needed, lead time and shipping options.
