Aluminum Folding Door
Bi-fold door systems with heavy-duty hardware for wide openings.
- Alloy
- 6063
- Temper
- T5
- Wall thickness
- 1.4 – 2.2 mm
- Size range
- Leaf width 600 – 1,000 mm, leaf height up to 2,900 mm
- Supply
- Complete door sets or profile-only supply for local fabrication.
Surface finishes
Powder coatingWood grain transferAnodizingElectrophoresis

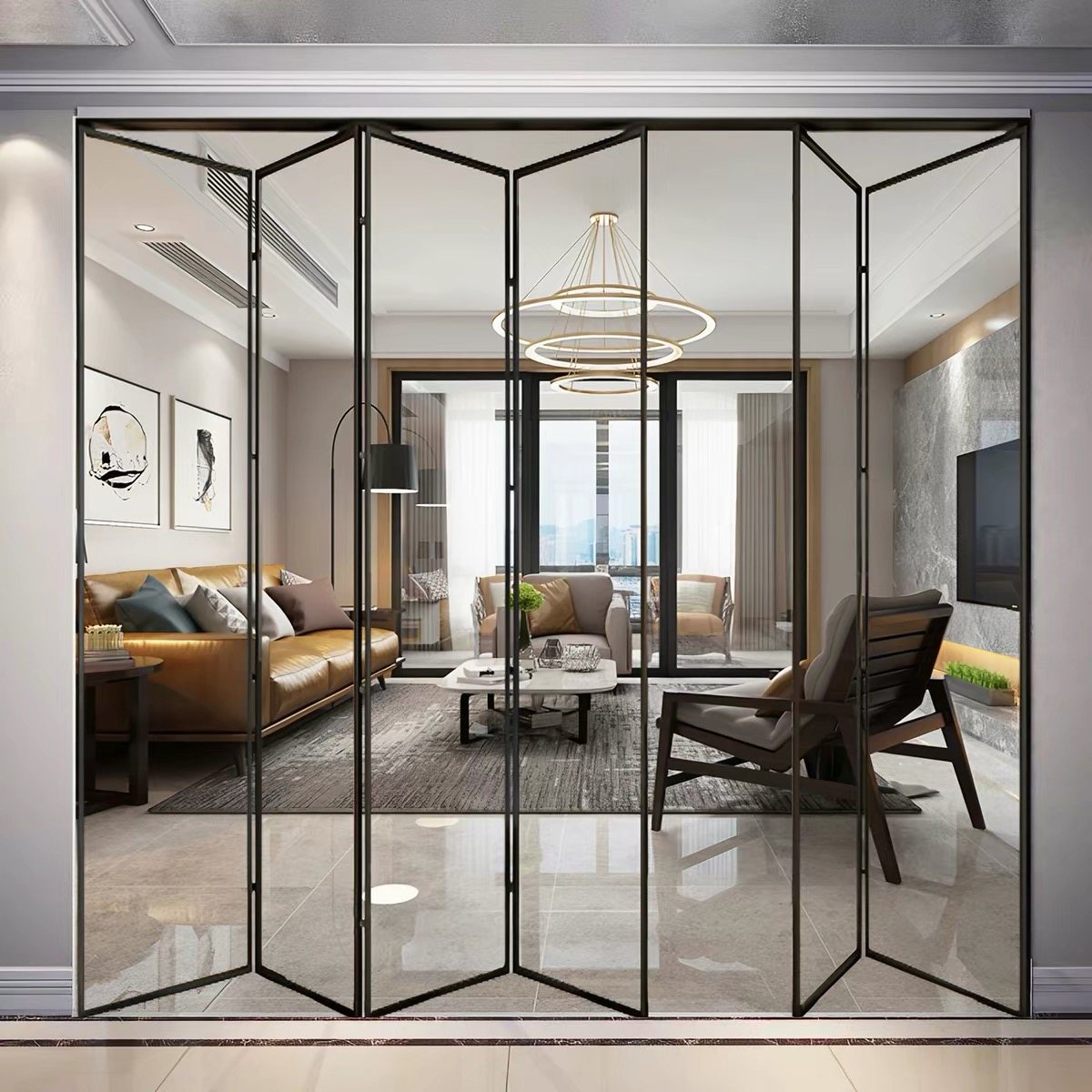

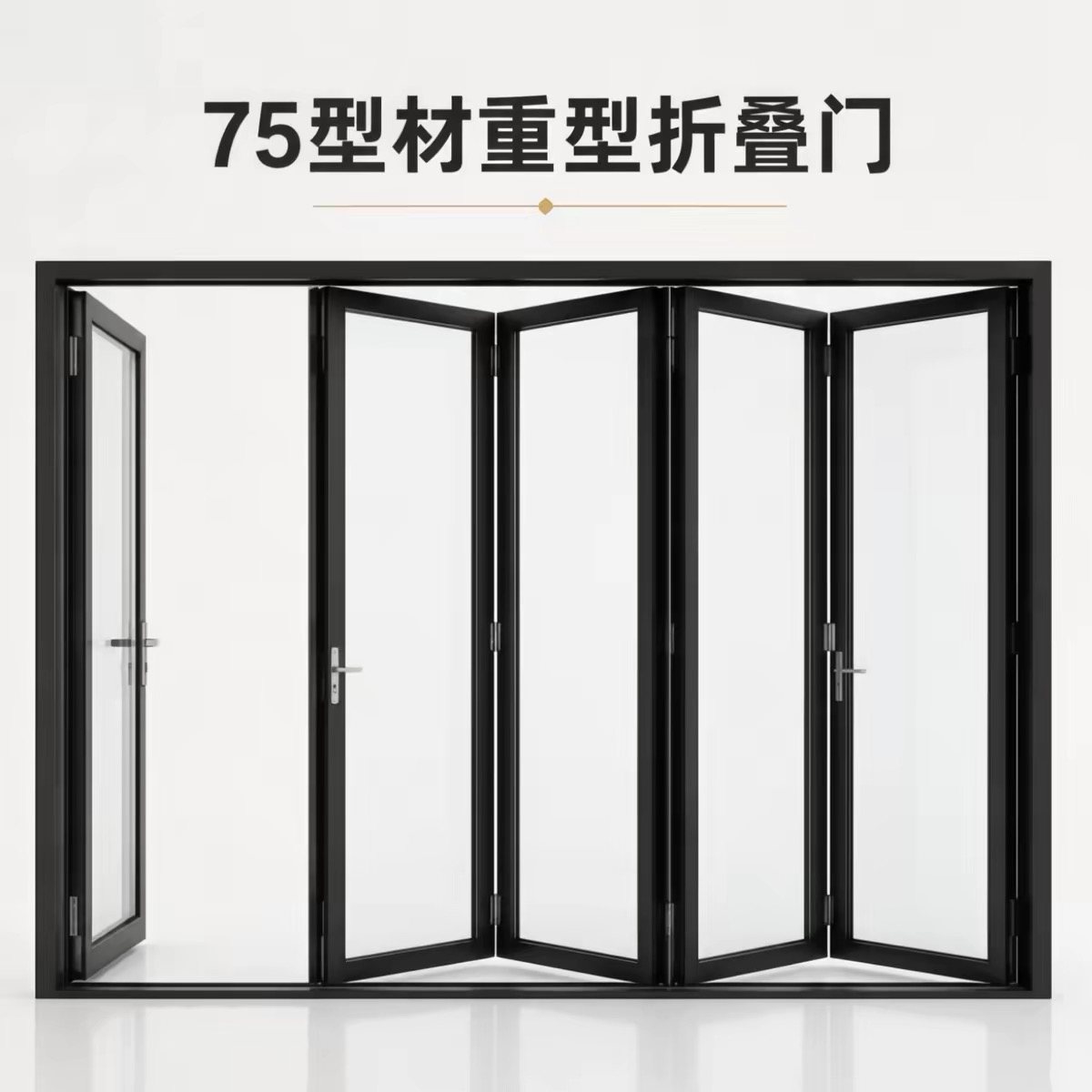

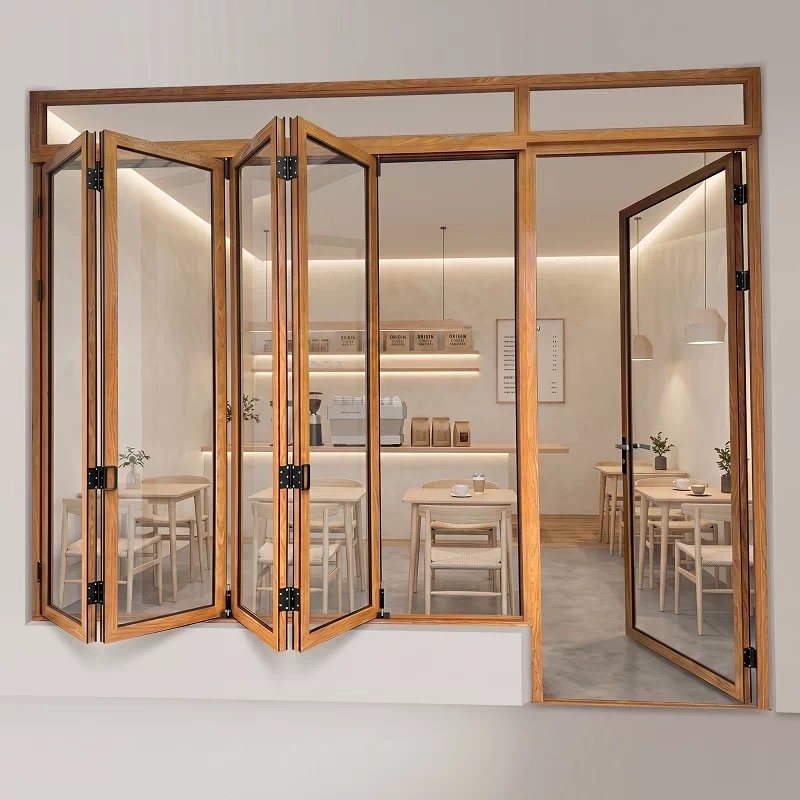

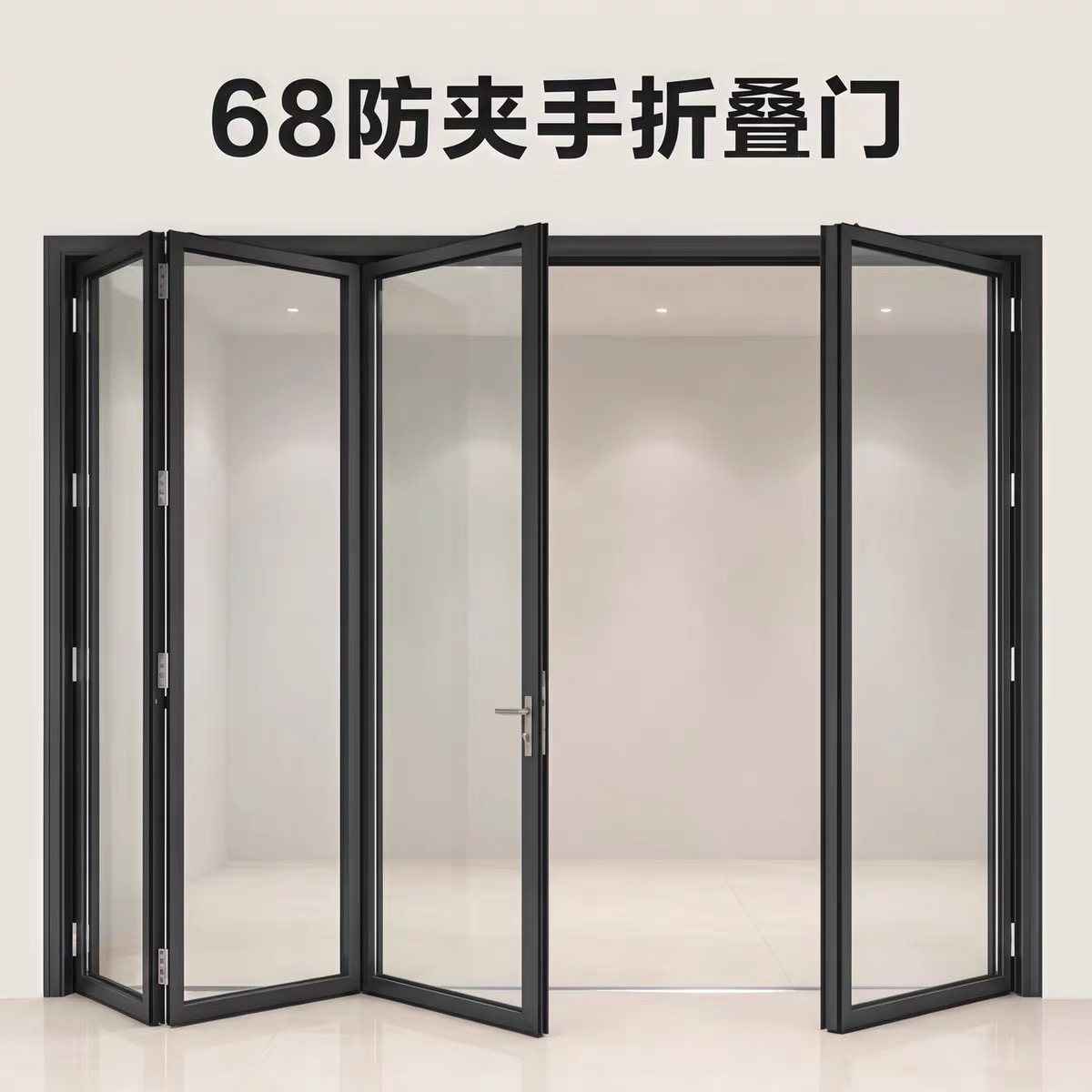

Folding door profiles open an entire façade. Leaves stack neatly to one or both sides on top-hung or bottom-rolling hardware, with thermal-break or non-insulated frames.
Frames accept double insulating glass, and stainless steel tracks with adjustable hinges keep operation smooth on openings over 6 metres wide.
Key Features
- Top-hung or bottom-rolling options
- Stainless steel track and rollers
- Multi-point locking
- Weather sealing on every leaf
Inquiry
Ask For A Price On Folding Door Profiles
Tell us the section, alloy, finish colour and quantity. We reply with unit price, tooling cost if a new die is needed, lead time and shipping options.
